2026 French Drain Installation Costs for Excavation & Grading Projects in the Bay Area

Eduardo Portillo • April 29, 2026

French drain installation cost in the Bay Area ranges from $25 to $75 per linear foot in 2026, putting most residential projects between $2,000 and $10,000 depending on length, depth, and soil conditions. The total depends on how much excavation the site requires and whether the drain ties into an existing stormwater system. Portillo's Paving Co. installs French drains as part of its excavation and grading services across the Bay Area.

Most homeowners who call about standing water in their yard think they have a drainage problem. They do, but the real issue is usually grading. When a property slopes toward the foundation instead of away from it, surface patching alone rarely stops water from pooling where it shouldn't. A French drain fixes the symptom, but proper grading solves the cause.

What Affects French Drain Installation Prices

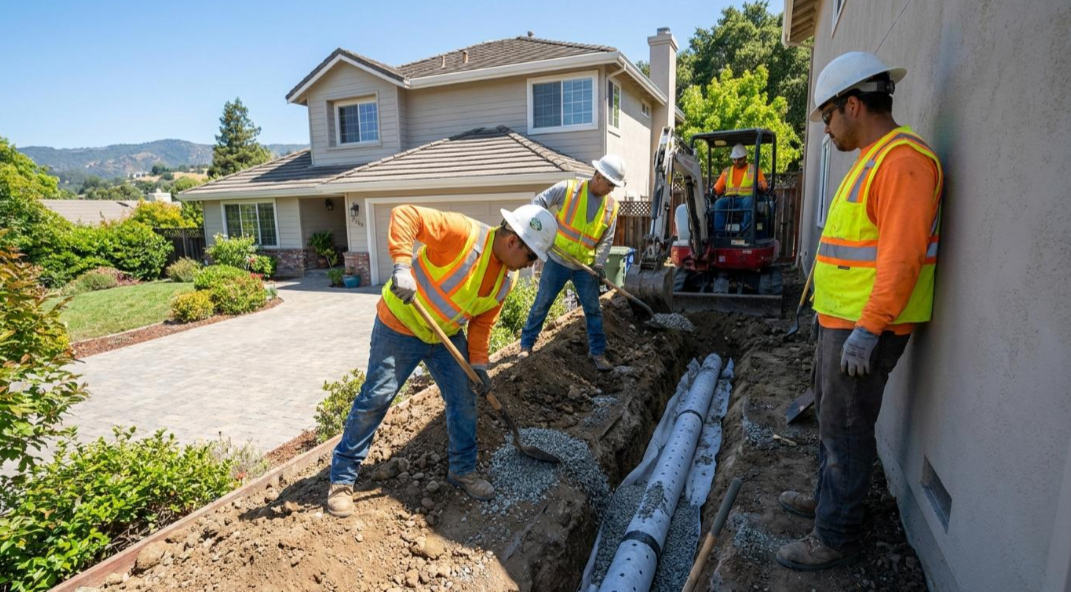

Utility workers in orange vests dig a trench beside a house, laying underground pipes

  • Drain length: A 50-foot perimeter drain costs less per foot than a 20-foot section because equipment mobilization and site prep are fixed costs that spread across more footage.
  • Trench depth: Standard residential French drains run 18-24 inches deep. Properties with severe grading issues or high water tables may need trenches 36 inches or deeper, which increases excavation time and material volume.
  • Soil type: Contra Costa County's dense clay soil requires more labor to excavate than the sandy loam found in parts of Alameda County. Clay also drains poorly on its own, which is why French drains are more common in Walnut Creek, Brentwood, and Pittsburg.
  • Discharge point: Drains that connect to a municipal storm system require permits and additional piping. Drains that daylight to a yard slope or dry well are simpler and less expensive.

How a French Drain Works

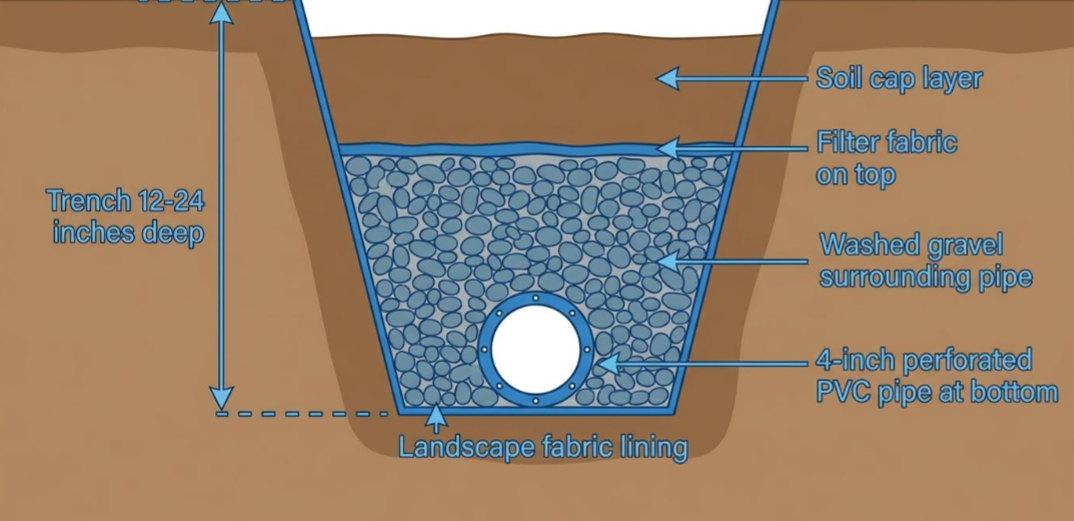

Cross-section of a gravel-filled drainage pit with labeled layers and a white perforated pipe at the bottom

A French drain is a gravel-filled trench with a perforated pipe at the bottom. Water seeps through the gravel, enters the pipe through its perforations, and flows by gravity to a discharge point away from the foundation.

The system has six layers, from bottom to top:

  • Compacted subgrade
  • Landscape fabric lining along the trench bottom and sides
  • A 4-inch perforated PVC pipe bedded in washed gravel
  • More gravel fill to within a few inches of grade
  • Filter fabric laid over the gravel
  • Top layer of soil or decorative stone

The fabric layers prevent fine soil particles from clogging the gravel — the bottom lining stops soil infiltration from below and the top filter fabric blocks migration from the cap layer. Without both, clay soils common in the East Bay can reduce drain effectiveness within three to five years.

French Drains and Bay Area Grading Projects

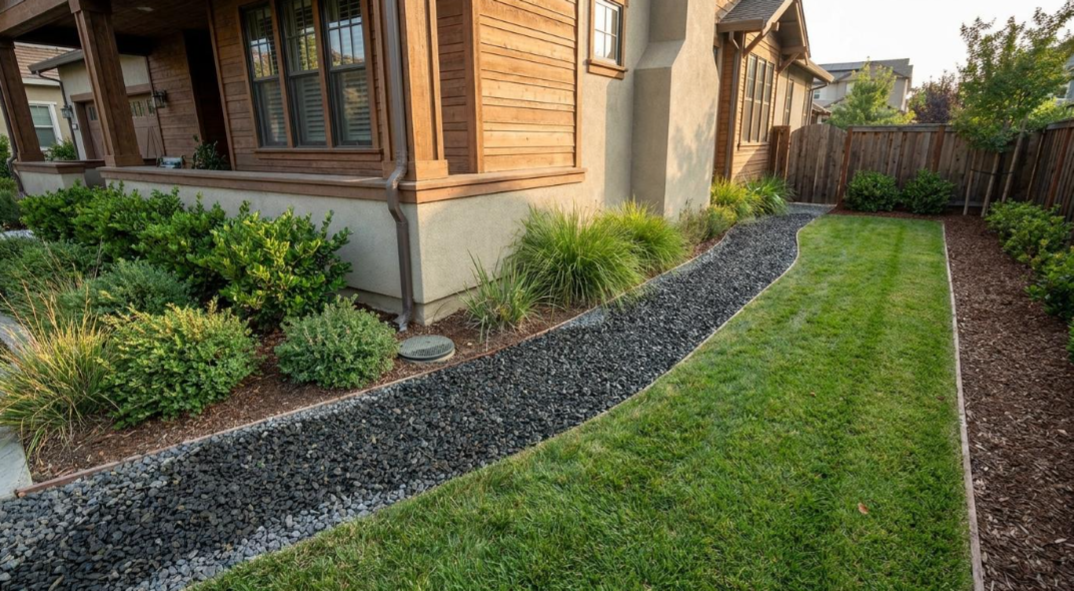

Curved gravel border beside a house with shrubs, a flower bed, and a neatly mowed green lawn

French drains rarely work as standalone solutions. When ground grading directs water toward a structure, the drain manages what arrives, but it doesn't fix the slope that sent it there. That's why most Bay Area drainage projects include regrading as part of the scope.

Properties in Brentwood and eastern Contra Costa County often need drainage work before new driveways or patios go in. The region's clay soil expands when wet and shrinks when dry, creating seasonal shifts that can redirect surface water toward foundations. Installing a French drain during the excavation phase of a paving project saves significantly compared to retrofitting one after the surface is finished.

Frequently Asked Questions

How long does a French drain last in Bay Area soil?

A properly installed French drain with landscape fabric and washed gravel lasts 20 to 30 years before the pipe or gravel bed needs replacement. Drains installed without fabric in clay-heavy soil may clog within five to eight years. Portillo's Paving Co. uses fabric-wrapped systems on every install to maximize lifespan in local soil conditions.

Do I need a permit for French drain installation in the Bay Area?

Most Bay Area jurisdictions require a permit when the drain connects to the municipal storm system or involves significant grading. Simple yard drains that discharge to a landscaped area or dry well typically don't need one. Your contractor should verify local requirements with the city before breaking ground.

Can I install a French drain myself to save money?

DIY installation is possible for short, shallow runs in sandy soil. In clay-heavy Bay Area properties, the excavation alone requires equipment most homeowners don't own. Improper slope calculation is the most common DIY failure point. If the pipe doesn't maintain a consistent 1% grade toward the discharge, water pools inside the drain instead of flowing out.

Stop the Water at Its Source

A French drain manages subsurface water effectively, but it works best when paired with proper site grading. The decision between a simple drain and a full grading project depends on what's causing the water to collect in the first place. Addressing the slope before installing the drain means the system handles overflow rather than carrying the full load.

Portillo's Paving Co. provides free drainage assessments for Bay Area homeowners. Contact us for a free estimate or call (925) 499 7986 to discuss your property's drainage and grading needs.
